Firmware Over The Air

This section describes how to use the AT@UPD command to upgrade the terminal firmware over the air.

Update Process

The firmware update process includes four steps: start the update, check security, download the update package and perform the update.

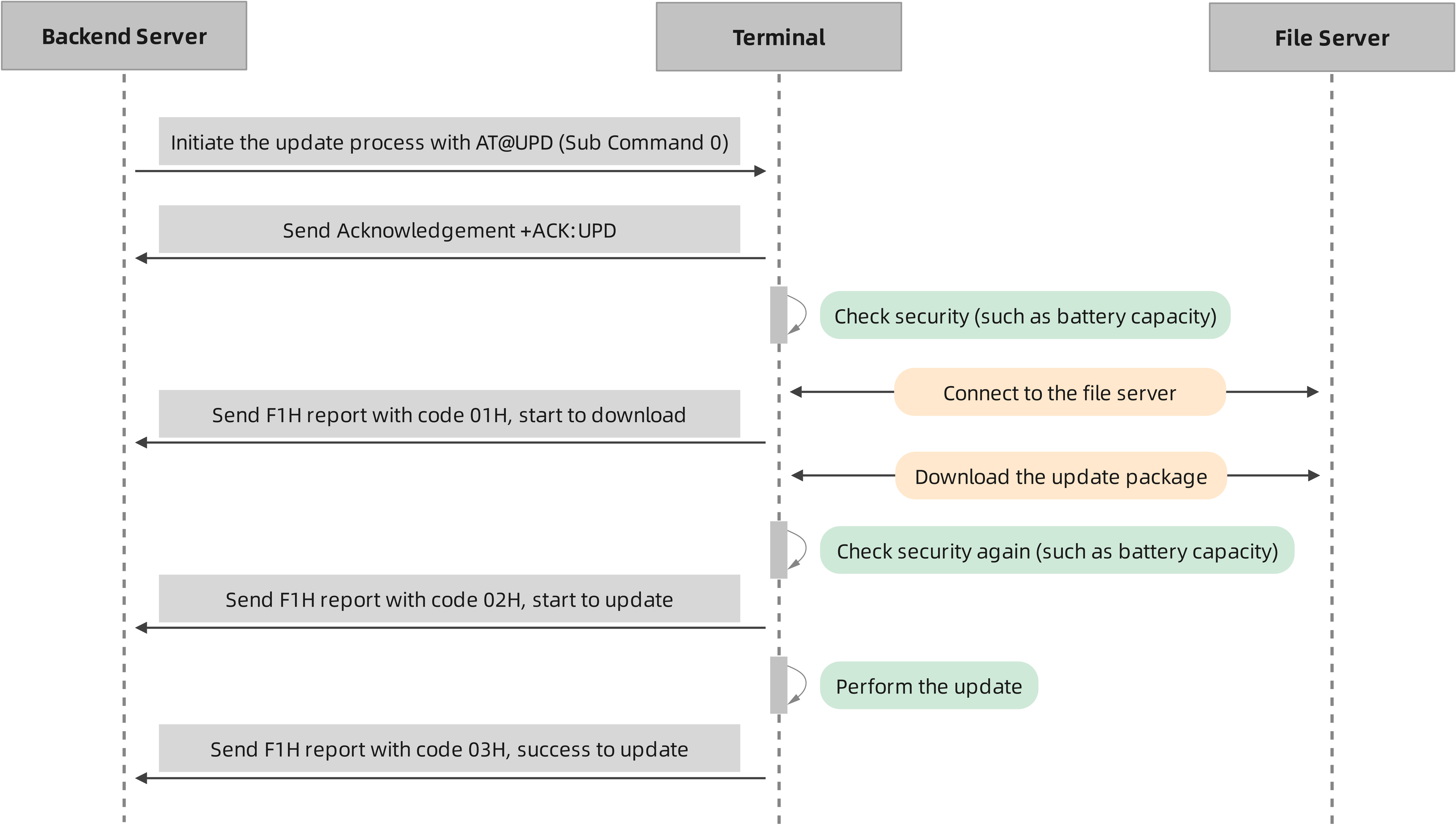

Here is a flowchart of successful update:

Flowchart of Successful Update

Please see below for more detailed information for each update step.

• Start the Update

  The backend server sends the AT@UPD (sub-command 0) command to the terminal to initiate the update process. Along with this command, necessary information is sent to the terminal to start the update process.

  Backend server decides when and how to initiate the firmware update process of all the terminals it controls. As the response message receiver and the controller, the backend server has all the information (including the current firmware version of the terminal, the version of the latest available firmware and the location of the proper update packages) it needs to start an update process.

• Check Security

  After receiving the valid AT@UPD (sub-command 0) command, the terminal will first check the security of the system, such as whether the battery is sufficient and whether the vehicle is parking (just for example). If the terminal is not currently in a secure environment, it will send a F1H report (code 04H) to inform the backend server that the update process is to be aborted. If the current terminal is in a state that allows the update, the terminal will connect to the file server. If the connection successful, the terminal will send a F1H report (code 01H) to the backend server and then start to download the update package.

• Download the Update Package

  If the terminal downloading the update package failed, it will retry until it succeeds or times out. If the downloading is successful, the terminal will check the downloaded file, after confirming that the file is right, the terminal will send a F1H report (code 02H) to the backend server and the update process proceeds to the next step.

  Before the “Perform the Update” step, if the terminal receives AT@UPD (sub-command 1) to cancel current update process, then the terminal will terminate the update process. In addition, if the terminal is in the process of downloading the file package when receiving the cancel command, then the terminal may send the F1H report (code 05H) to the backend server after the download process is completed (before “Perform the Update”).

• Perform the Update

  After downloading the package successfully, the terminal will check the system security again. If the terminal is not currently in a secure environment, the terminal will send a F1H report (code 08H) to inform the backend server that the update process is to be aborted. Otherwise, the terminal will start updating. After the update, whether successful or not, the terminal will reboot automatically. After that, it will send a F1H report (if successful, the code is 03H) with update information to the backend server and work as usual.

The AT@UPD command and F1H report are described in detail below.

UPD (Upgrade Firmware)

The AT@UPD command is used to update the firmware of terminal via network.

Note

Download files from the specified URL. After the terminal fails to connect to the file server (which specified by ‘Download URL’), a gradual delay retry strategy will be adopted.

Example:
AT@UPD=gl601###,0,1,,,10,http://218.17.46.11:979/GL601/deltabin/GL601_R00A01V02.enc,,,,,1234$
+ACK:UPD,123456789012345,C031,10,0,0,1234,20210407101530,1234$
+NACK:UPD,123456789012345,C031,10,0,0,0,1234,20210407101530,1234$
AT@UPD=gl601###,1,,,,,,,,,,0125$
+ACK:UPD,123456789012345,C031,10,0,1,0125,20210407101530,1234$
+NACK:UPD,123456789012345,C031,10,0,1,2,0125,20210407101530,1234$

Parts	Fields	Length (Byte)	Range/Format	Default
Head	Header	3	AT@	AT@
	Command Word	3	UPD	UPD
	Leading Symbol	1	=	=
	Password	8-16		gl601###
Body	Sub Command	1	0-1
	Update Type	<=2	Please see below.
	Reserved	0
	Reserved	0
	Download Timeout	<=2	10 - 60 (minutes)	10
	Download URL	<=150	A valid URL.
	Authentication Username	<=6	‘0’-‘9’, ‘a’-‘z’, ‘A’-‘Z’
	Authentication Password	<=6	‘0’-‘9’, ‘a’-‘z’, ‘A’-‘Z’
	Reserved	0
	Reserved	0
Tail	Sequence Number	4	0000-FFFF (‘0’-‘9’, ‘A’-‘F’)
	Tail	1	$	$

• Sub Command

  A numeral to indicate the sub command to be executed.

  • 0 - Start the firmware update.

  • 1 - Stop the firmware update.

  Note

  If this field is 1, the other fields below can be empty.

• Update Type

  The type of the firmware to be updated.

  • 1 - Tracker firmware.

  • 2 - Bluetooth firmware.

  • 6 - Modem firmware.

  • 8 - GNSS firmware.

• Download Timeout

  If downloading is not finished within this time, it will be regarded that the downloading failed.

• Download URL

  It specifies the URL to download the package.

  For GL601, the following URL types are supported:

  • HTTP URL

• Authentication Username

  If the server (that corresponding to URL) uses authentication, the username is specified here.

• Authentication Password

  If the server (that corresponding to URL) uses authentication, the password is specified here.

F1H (UPD Status)

During the firmware update process, the device reports its status including the update confirmation information, package downloading information and firmware update information to the backend server via this message (a report that only carries Record F1H) at different phases.

For example (Total 41 bytes):
2B 00 00 29 00 01 23 45 67 89 01 23 45 C0 31 00 0A 00 00 12 66 8E 47 F7 00 00 F1 00 65 07 01 00 01 00 00 00 00 01 23 32 24

For example (Total 41 bytes):
2B 00 00 29 00 01 23 45 67 89 01 23 45 C0 31 00 0A 00 00 12 66 8E 47 F7 00 00 F1 00 65 07 02 00 01 00 00 00 00 01 23 DC 24

For example (Total 41 bytes):
2B 00 00 29 00 01 23 45 67 89 01 23 45 C0 31 00 0A 00 00 12 66 8E 47 F7 00 00 F1 00 65 07 03 00 01 00 00 00 00 01 23 69 24

Parts	Fields		Length (Byte)	Range/Format	Default
Head			18 or 20
Reserved			1 or 1+N
Records	Record Length		1 or 2	00H-7FH or 8080H-FFFFH
	Generated Time		4
	Record ID		1	F1H	F1H
	Event Code		1	00H	00H
	Data of Record	Data ID	1 or 2	00H-7FH or 8080H-FFFFH
		Data Length	1 or 2	00H-7FH or 8080H-FFFFH
		Data Content	N
		…
	…
Tail			4

The definitions of parts ‘Head’, ‘Reserved’, and ‘Tail’ are here.

• Event Code

  The default is 00H.

• Data of Record

  Fixedly, this record contains only the following Data ID units:

  • Data 101 - Upgrade Information.
